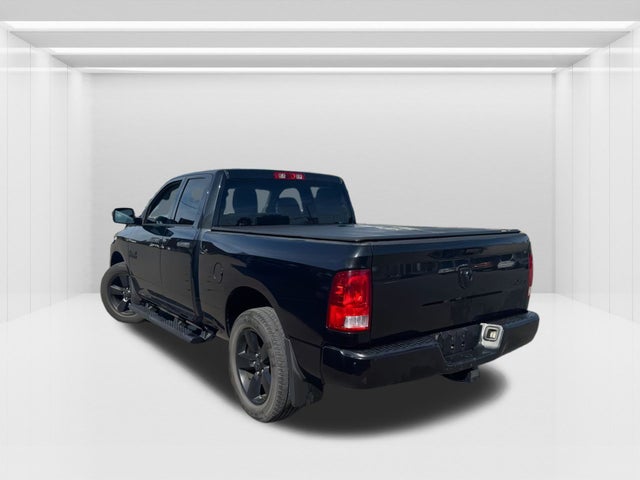

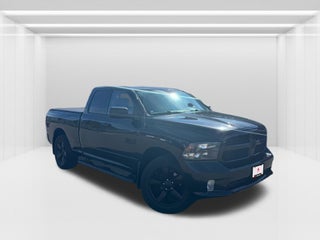

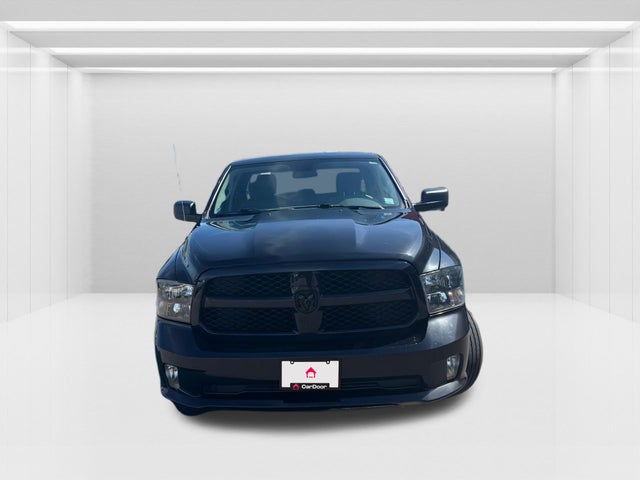

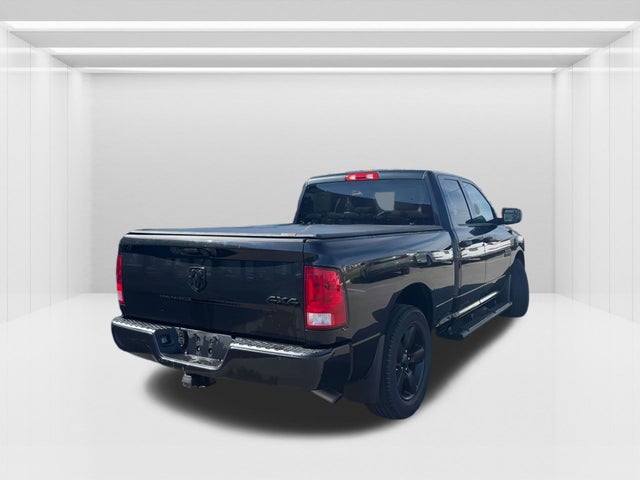

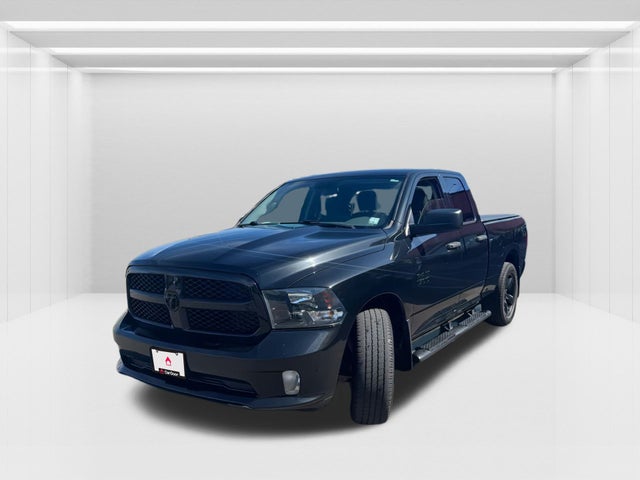

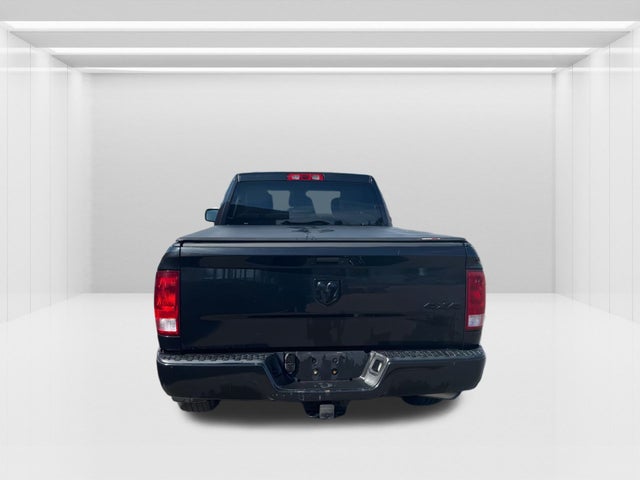

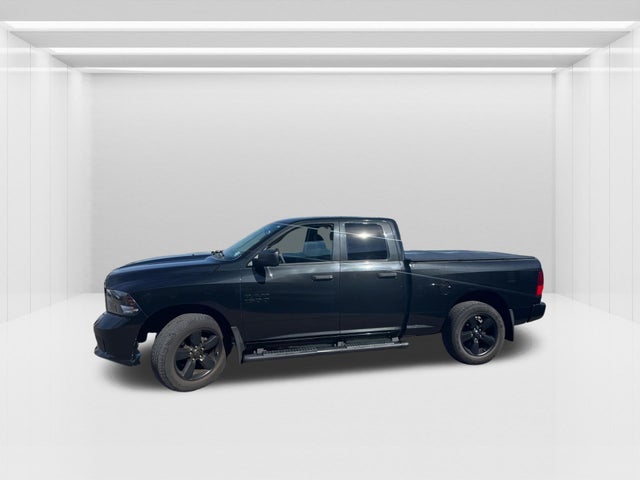

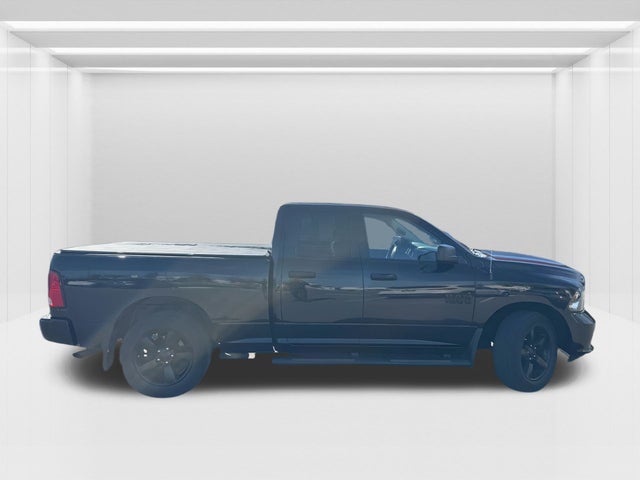

2018 Ram

• Tires
• Rear Tire Size: P275/60SR20
• Front Tire Size: P275/60SR20
• Spare Tire Size: Full-Size
• Rear Tire Order Code: TTN
• Front Tire Order Code: TTN
• Spare Tire Order Code: TBS
• Rear Tire Capacity (lbs): 4728
• Front Tire Capacity (lbs): 4728
• Revolutions/Mile @ 45 mph - Rear: 636
• Revolutions/Mile @ 45 mph - Front: 636

• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Disc - Rear (Yes or ): Yes
• Disc - Front (Yes or ): Yes
• Brake ABS System (Second Line): 4-Wheel
• Rear Brake Rotor Diam x Thickness (in): 13.8
• Front Brake Rotor Diam x Thickness (in): 13.2

• Engine
• Engine Type: Regular Unleaded V-6
• Fuel System: Sequential MPI
• Displacement: 3.6 L/220
• Engine Oil Cooler: Regular Duty
• Engine Order Code: ERB
• SAE Net Torque @ RPM: 269 @ 4175
• SAE Net Horsepower @ RPM: 305 @ 6400

• Wheels
• Rear Wheel Material: Aluminum
• Front Wheel Material: Aluminum
• Rear Wheel Size (in): 20 X 8
• Spare Wheel Material: Steel
• Front Wheel Size (in): 20 X 8
• Spare Wheel Size (in): Full-Size

• Mileage
• Fuel Economy Est-Combined (MPG): 19
• EPA Fuel Economy Est - Hwy (MPG): 23
• EPA Fuel Economy Est - City (MPG): 16

• Summary
• Body Code: T
• Body Style: Quad Cab
• Vehicle Name: Ram 1500

• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 45.4

• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.4

• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26

• Electrical
• Cold Cranking Amps @ 0° F (2nd): 730
• Maximum Alternator Capacity (amps): 160
• Cold Cranking Amps @ 0° F (Primary): 730

• Suspension
• Axle Type - Rear: Rigid Axle
• Axle Type - Front: Independent
• Axle Ratio (:1) - Rear: 3.21
• Suspension Type - Rear: Multi-Link
• Axle Ratio (:1) - Front: 3.21
• Suspension Type - Front: Short And Long Arm
• Axle Capacity - Rear (lbs): 3900
• Axle Capacity - Front (lbs): 3900

• Trailering
• Maximum Trailering Capacity (lbs): 4480
• Dead Weight Hitch - Max Tongue Wt. (lbs): 448
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4480
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 448
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4480

• Transmission
• Drivetrain: Four Wheel Drive
• Trans Type: 8
• Trans Order Code: DFL
• Trans PTO Access: No
• Reverse Ratio (:1): 3.29
• Transfer Case Model: Electronic
• Fifth Gear Ratio (:1): 1.28
• First Gear Ratio (:1): 4.71
• Sixth Gear Ratio (:1): 1.00
• Third Gear Ratio (:1): 2.11
• Eighth Gear Ratio (:1): 0.67
• Fourth Gear Ratio (:1): 1.67
• Second Gear Ratio (:1): 3.14
• Seventh Gear Ratio (:1): 0.84
• Trans Description Cont.: Automatic w/OD
• Transfer Case Power Take Off: No

• Weight Information
• Base Curb Weight (lbs): 5096
• Curb Weight - Rear (lbs): 2193
• Curb Weight - Front (lbs): 2873
• Gross Combined Wt Rating (lbs): 9850
• Gross Axle Wt Rating - Rear (lbs): 3900
• Gross Axle Wt Rating - Front (lbs): 3900
• Gross Vehicle Weight Rating Cap (lbs): 6800

• Exterior Dimensions
• Wheelbase (in): 140
• Cab to Axle (in): 36.9
• Height, Overall (in): 77.7
• Length, Overall (in): 229
• Ground Clearance, Rear (in): 8.6
• Width, Max w/o mirrors (in): 79.4
• Ground Clearance, Front (in): 8.6
• Overhang, Rear w/o bumper (in): 48.4
• Ground to Top of Load Floor (in): 34.9

• Interior Dimensions
• Passenger Capacity: 6
• Front Hip Room (in): 63.2
• Front Leg Room (in): 41
• Front Head Room (in): 41
• Second Hip Room (in): 62.9
• Second Leg Room (in): 34.7
• Second Head Room (in): 39.7
• Front Shoulder Room (in): 66
• Second Shoulder Room (in): 65.7

• Cargo Area Dimensions
• Cargo Volume (ft³): 57.5
• Tailgate Width (in): 60.4
• Cargo Box (Area) Height (in): 20.1
• Cargo Box Width @ Floor (in): 66.4
• Cargo Box Length @ Floor (in): 76.3
• Cargo Box Width @ Top, Rear (in): 66.4
• Cargo Box Width @ Wheelhousings (in): 51
