2020 Chevrolet

• Doors
• Side Door Type: Swing-out

• Frame
• Frame Type: Ladder

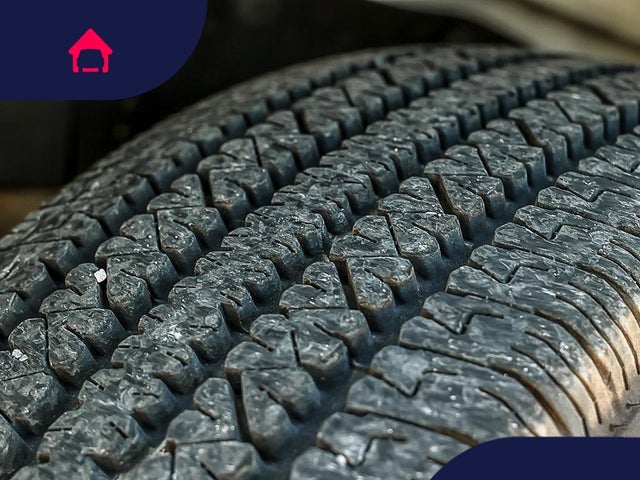

• Tires
• Rear Tire Size: LT245/75R16E
• Front Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Revolutions/Mile : 45 mph - Front
• Rear Tire Order Code: YLP
• Front Tire Order Code: XLP
• Spare Tire Order Code: ZLP
• Rear Tire Capacity (lbs): 3042
• Front Tire Capacity (lbs): 2205

• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Rear (Yes or ): Yes
• Disc - Front (Yes or ): Yes
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5

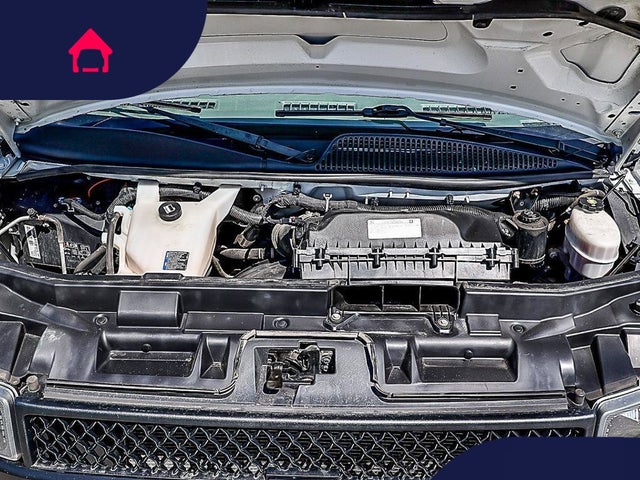

• Engine
• Engine Type: Gas V6
• Fuel System: Direct Injection
• Displacement: 4.3L/
• SAE Net Torque : RPM
• Engine Oil Cooler: Yes
• Engine Order Code: LV1
• SAE Net Horsepower : RPM

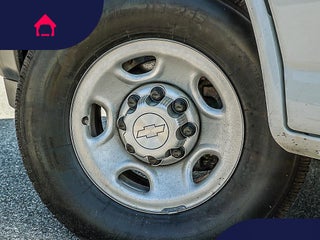

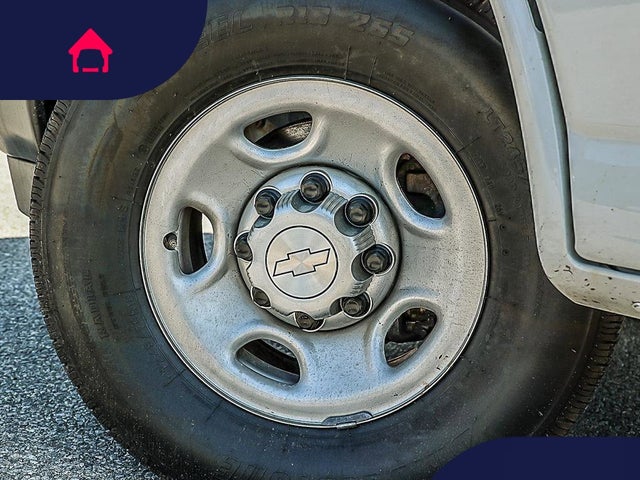

• Wheels
• Rear Wheel Material: Steel
• Front Wheel Material: Steel
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Material: Steel
• Front Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5

• Summary
• Body Code: ZW9
• Body Style: Cargo Van

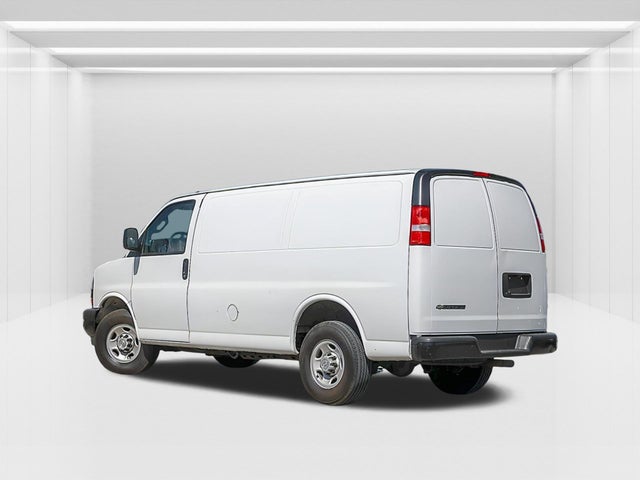

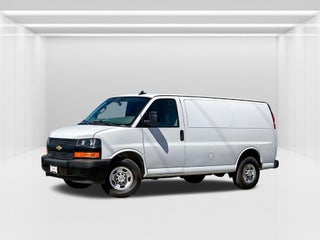

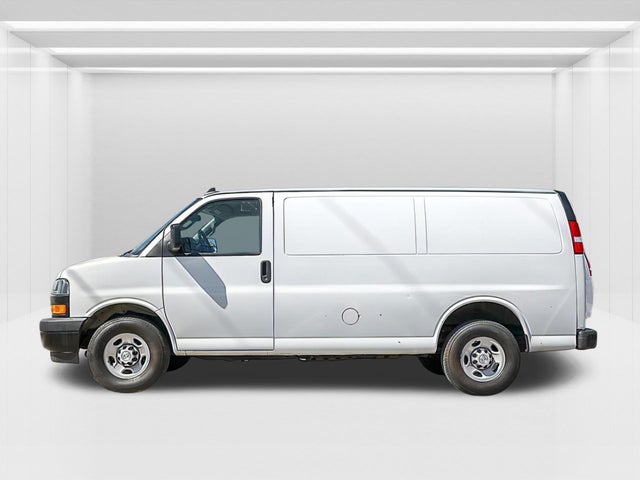

• Vehicle Name: Chevrolet Express Cargo Van

• Vehicle

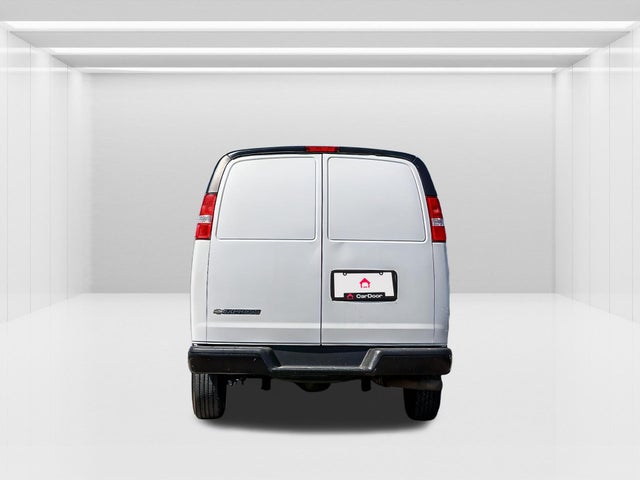

• Rear Door Type: Dual Swing-out

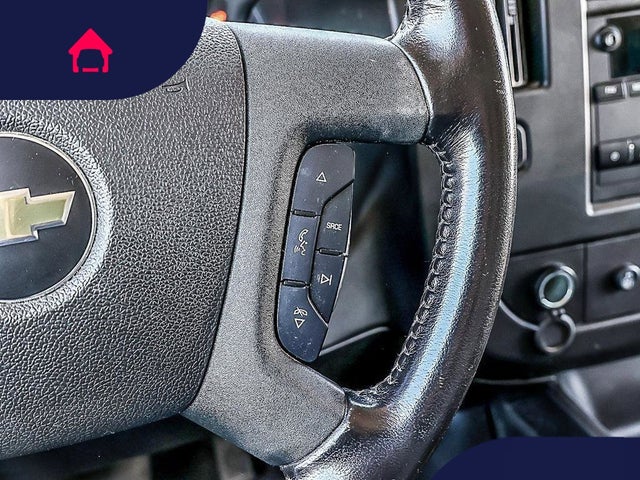

• Steering
• Steering Type: Pwr
• Steering Ratio (:1), At Lock: 17.2
• Steering Ratio (:1), On Center: 17.2
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): N/A

• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year

• Fuel Tank
• Fuel Tank Location: Mid-frame
• Fuel Tank Capacity, Approx (gal): 31

• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Maximum Alternator Capacity (amps): 105

• Suspension
• Axle Type - Rear: Semi-Floating
• Axle Type - Front: Independent
• Axle Ratio (:1) - Rear: 3.42
• Suspension Type - Rear: Hypoid Multi-Leaf
• Suspension Type - Front: Coil Spring
• Axle Capacity - Rear (lbs): 5360
• Axle Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 5360
• Spring Capacity - Front (lbs): 4100
• Shock Absorber Diameter - Rear (mm): N/A
• Shock Absorber Diameter - Front (mm): N/A
• Stabilizer Bar Diameter - Front (in): 1.38

• Trailering
• Maximum Trailering Capacity (lbs): 10000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 740
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7400

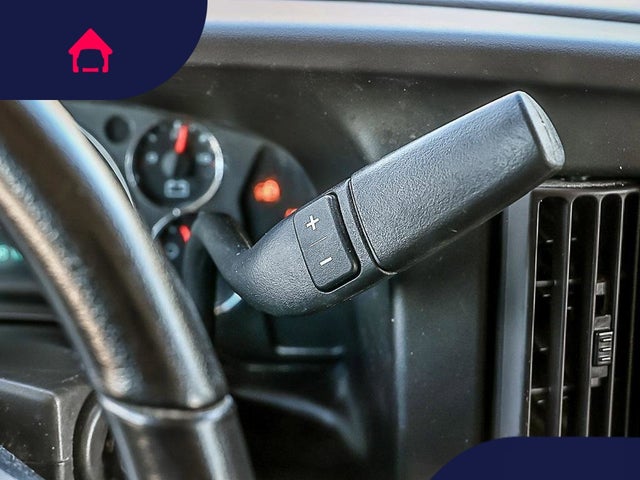

• Transmission
• Drivetrain: Rear Wheel Drive
• Trans Type: 8
• Trans Order Code: M5U
• Reverse Ratio (:1): 3.82
• Fifth Gear Ratio (:1): 1.27
• First Gear Ratio (:1): 4.56
• Sixth Gear Ratio (:1): 1.00
• Third Gear Ratio (:1): 2.08
• Eighth Gear Ratio (:1): 0.65
• Fourth Gear Ratio (:1): 1.69
• Second Gear Ratio (:1): 2.97
• Seventh Gear Ratio (:1): 0.85
• Trans Description Cont.: Automatic

• Cooling System
• Total Cooling System Capacity (qts): 13.6

• Weight Information
• Curb Weight - Rear (lbs): 2172
• Curb Weight - Front (lbs): 2921
• Gross Combined Wt Rating (lbs): 13000
• Gross Axle Wt Rating - Rear (lbs): 5360
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Vehicle Weight Rating Cap (lbs): 8600

• Exterior Dimensions
• Wheelbase (in): 135.15
• Height, Overall (in): 84.75
• Length, Overall (in): 224.05
• Overhang, Front (in): 39.7
• Step Up Height - Side (in): 28.25
• Ground Clearance, Rear (in): 8.62
• Step Up Height - Front (in): 27.67
• Width, Max w/o mirrors (in): 79.25
• Ground Clearance, Front (in): 9.72
• Rear Door Opening Width (in): 53.42
• Rear Door Opening Height (in): 49.4
• Ground to Top of Load Floor (in): 30.3

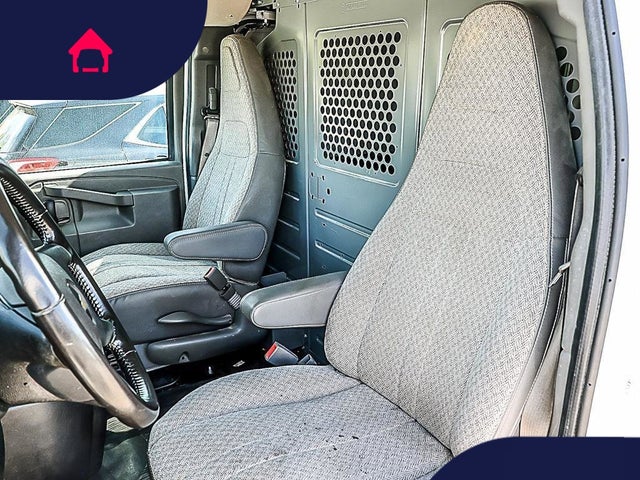

• Interior Dimensions
• Passenger Capacity: 2
• Front Hip Room (in): 65.47
• Front Leg Room (in): 41.35
• Front Head Room (in): 40.85
• Front Shoulder Room (in): 68.85

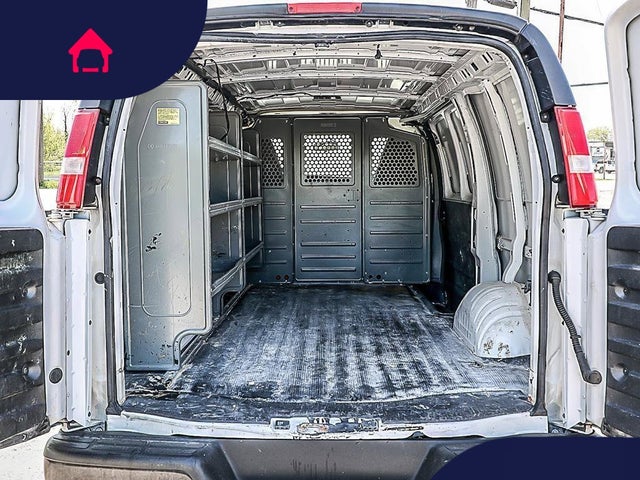

• Cargo Area Dimensions
• Cargo Box Width : Wheelhousings (in)
• Cargo Area Width : Beltline (in)
• Cargo Area Length : Floor to Console (in)
• Cargo Volume (ft³): 239.4
• Cargo Box (Area) Height (in): 55.08
