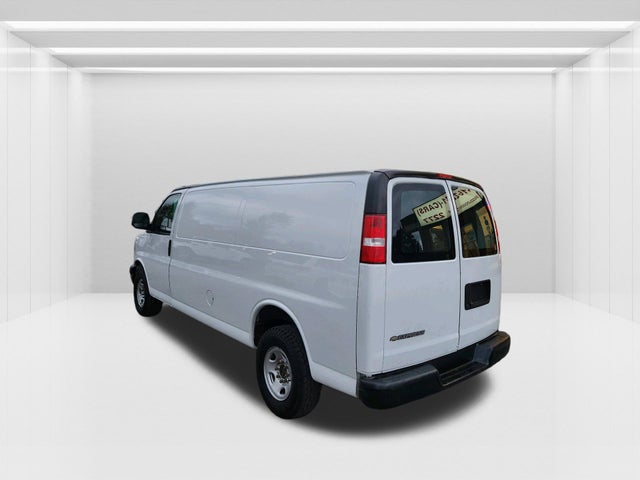

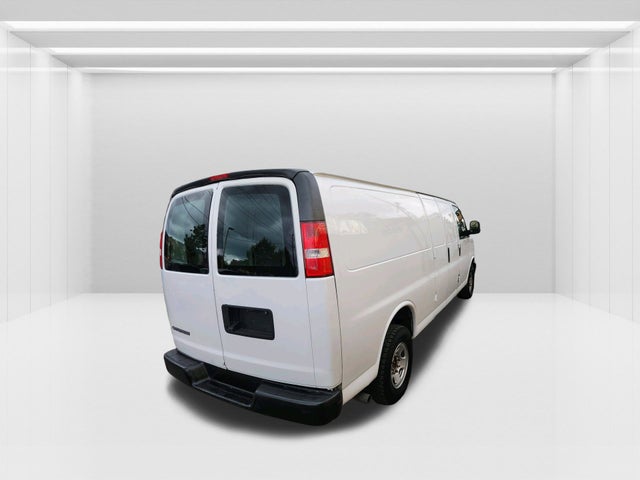

2019 Chevrolet

• Doors
• Side Door Type: Swing-out

• Frame
• Frame Type: Ladder

• Tires
• Rear Tire Size: LT245/75R16E
• Front Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Rear Tire Order Code: YLP
• Front Tire Order Code: XLP
• Spare Tire Order Code: ZLP
• Rear Tire Capacity (lbs): 2680
• Front Tire Capacity (lbs): 2190

• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Rear (Yes or ): Yes
• Disc - Front (Yes or ): Yes
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5

• Engine
• Engine Type: Gas V6
• Fuel System: Direct Injection
• Displacement: 4.3L/
• Engine Oil Cooler: Yes
• Engine Order Code: LV1
• SAE Net Torque @ RPM: 298 @ 3900
• SAE Net Horsepower @ RPM: 276 @ 5200

• Wheels
• Rear Wheel Material: Steel
• Front Wheel Material: Steel
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Material: Steel
• Front Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5

• Summary
• Body Code: ZW9
• Body Style: Cargo Van

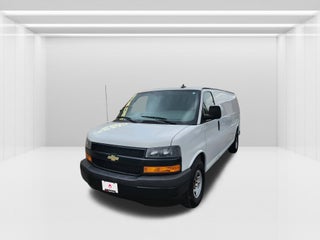

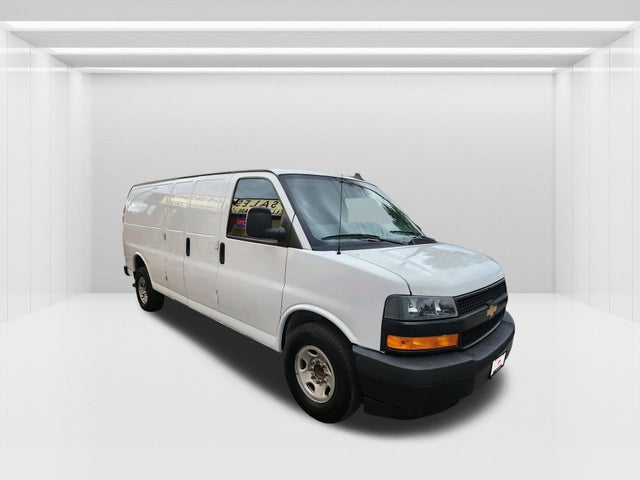

• Vehicle Name: Chevrolet Express Cargo Van

• Vehicle

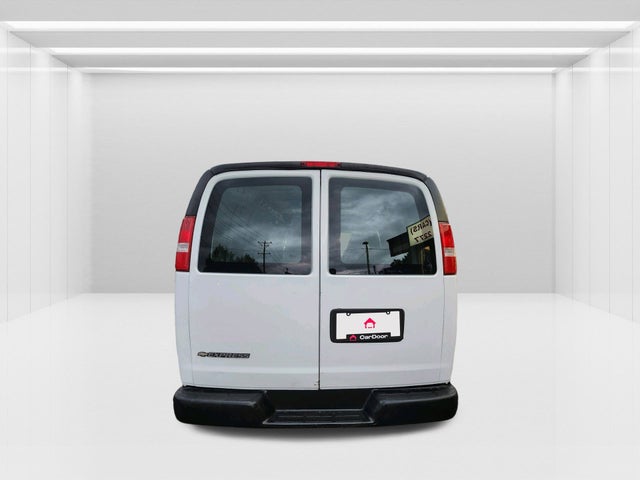

• Rear Door Type: Dual Swing-out

• Steering
• Steering Type: Pwr
• Steering Ratio (:1), At Lock: 17.2
• Steering Ratio (:1), On Center: 17.2
• Turning Diameter - Curb to Curb (ft): 54.5
• Turning Diameter - Wall to Wall (ft): N/A

• Fuel Tank
• Fuel Tank Location: Mid-frame
• Fuel Tank Capacity, Approx (gal): 31

• Electrical
• Maximum Alternator Capacity (amps): 105
• Cold Cranking Amps @ 0° F (Primary): 600

• Suspension
• Axle Type - Rear: Semi-Floating
• Axle Type - Front: Independent
• Axle Ratio (:1) - Rear: 3.42
• Suspension Type - Rear: Hypoid Multi-Leaf
• Suspension Type - Front: Coil Spring
• Axle Capacity - Rear (lbs): 5360
• Axle Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 5360
• Spring Capacity - Front (lbs): 4300
• Shock Absorber Diameter - Rear (mm): N/A
• Shock Absorber Diameter - Front (mm): N/A
• Stabilizer Bar Diameter - Front (in): 1.38

• Trailering
• Maximum Trailering Capacity (lbs): 10000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 710
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7100

• Transmission
• Drivetrain: Rear Wheel Drive
• Trans Type: 8
• Trans Order Code: M5U
• Reverse Ratio (:1): 3.82
• Fifth Gear Ratio (:1): 1.27
• First Gear Ratio (:1): 4.56
• Sixth Gear Ratio (:1): 1.00
• Third Gear Ratio (:1): 2.08
• Eighth Gear Ratio (:1): 0.65
• Fourth Gear Ratio (:1): 1.69
• Second Gear Ratio (:1): 2.97
• Seventh Gear Ratio (:1): 0.85
• Trans Description Cont.: Automatic

• Cooling System
• Total Cooling System Capacity (qts): 13.6

• Weight Information
• Curb Weight - Rear (lbs): 2299
• Curb Weight - Front (lbs): 3049
• Gross Combined Wt Rating (lbs): 13000
• Gross Axle Wt Rating - Rear (lbs): 5360
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Vehicle Weight Rating Cap (lbs): 8600

• Exterior Dimensions
• Wheelbase (in): 155
• Height, Overall (in): 84.3
• Length, Overall (in): 244.1
• Overhang, Front (in): 39.7
• Step Up Height - Side (in): 20.8
• Ground Clearance, Rear (in): 7.1
• Step Up Height - Front (in): 20.3
• Width, Max w/o mirrors (in): 79.2
• Ground Clearance, Front (in): 11
• Rear Door Opening Width (in): 57
• Side Door Opening Width (in): 44.1
• Rear Door Opening Height (in): 49.4
• Side Door Opening Height (in): 47.9
• Ground to Top of Load Floor (in): 27.8

• Interior Dimensions
• Passenger Capacity: 2

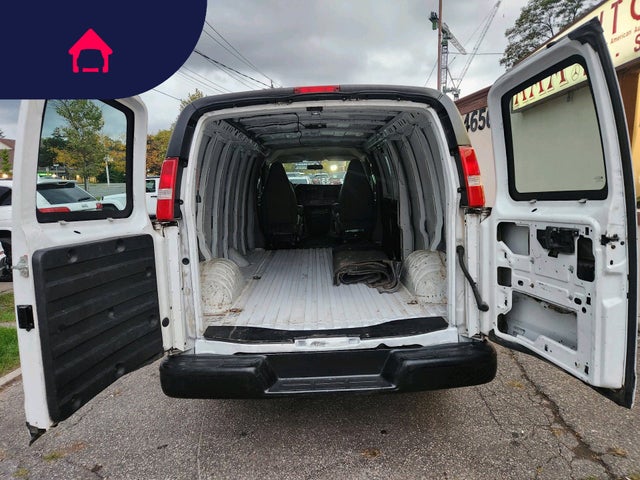

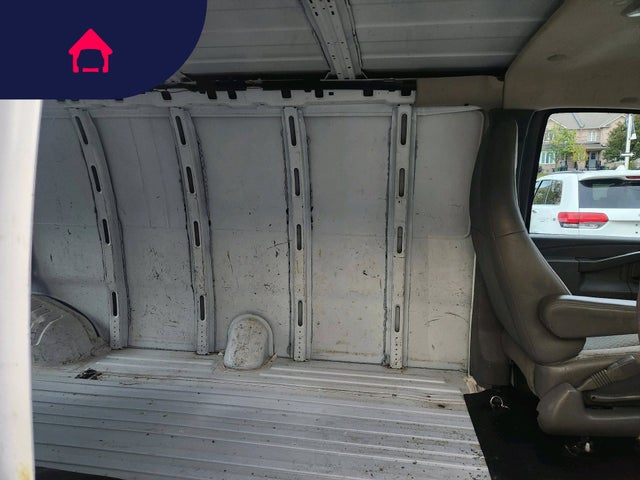

• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 53.4
• Cargo Box Width @ Wheelhousings (in): 52.7
• Cargo Area Length @ Floor to Seat 1 (in): 146.2
• Cargo Area Length @ Floor to Console (in): 173.6
