2025 Volkswagen

• Tires
• Rear Tire Size: P255/50HR20
• Front Tire Size: P255/50HR20
• Spare Tire Size: Compact

• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Disc - Rear (Yes or ): Yes
• Disc - Front (Yes or ): Yes
• Rear Brake Rotor Diam x Thickness (in): 12.2
• Front Brake Rotor Diam x Thickness (in): 13.2

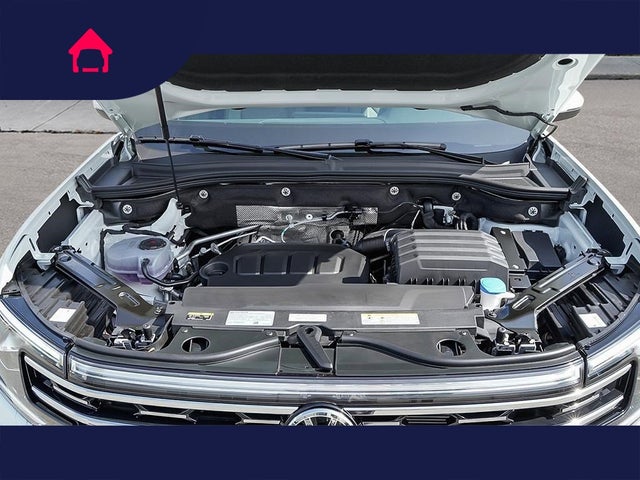

• Engine
• Engine Type: Intercooled Turbo Premium Unleaded I-4
• Fuel System: Gasoline Direct Injection
• Displacement: 2.0 L/121
• SAE Net Torque : RPM
• SAE Net Horsepower : RPM

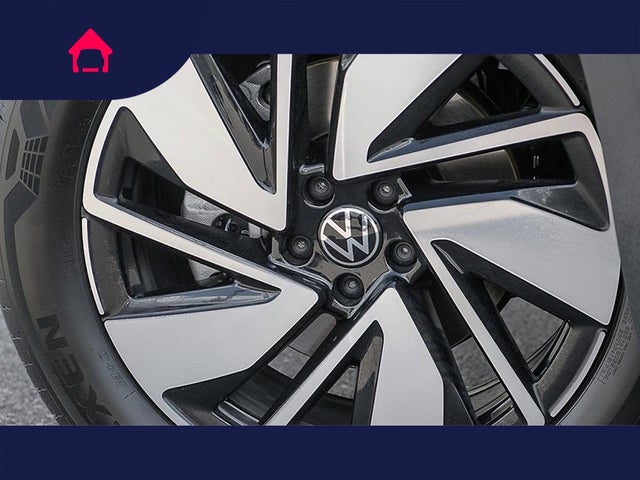

• Wheels
• Rear Wheel Material: Aluminum
• Front Wheel Material: Aluminum
• Rear Wheel Size (in): 20 X 8
• Spare Wheel Material: Steel
• Front Wheel Size (in): 20 X 8
• Spare Wheel Size (in): Compact

• Mileage
• Fuel Economy Est-Combined (MPG): 21
• EPA Fuel Economy Est - Hwy (MPG): 25
• EPA Fuel Economy Est - City (MPG): 18

• Summary
• Body Style: 4MOTION

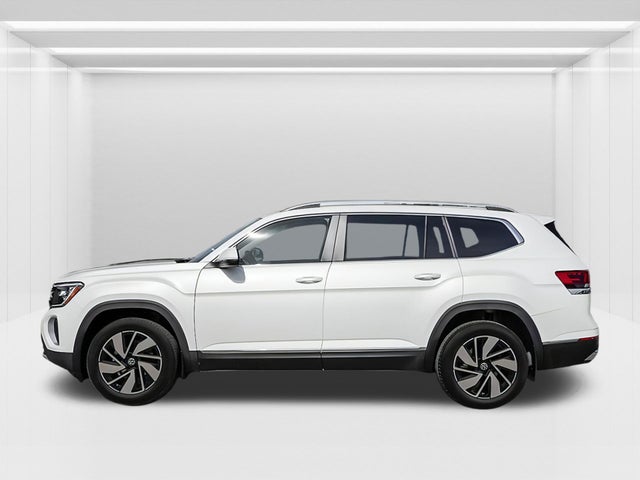

• Vehicle Name: Volkswagen Atlas

• Vehicle
• EPA Classification: Small SUV 4WD

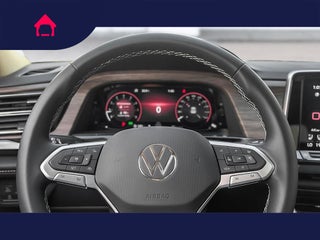

• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 40.5

• Emissions
• EPA Greenhouse Gas Score: 4.0
• Tons/yr of CO2 Emissions : 15K mi/year

• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 18.6

• Suspension
• Suspension Type - Rear: Multi-Link
• Suspension Type - Front: Strut
• Suspension Type - Rear (Cont.): Multi-Link
• Suspension Type - Front (Cont.): Strut

• Trailering
• Maximum Trailering Capacity (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5000

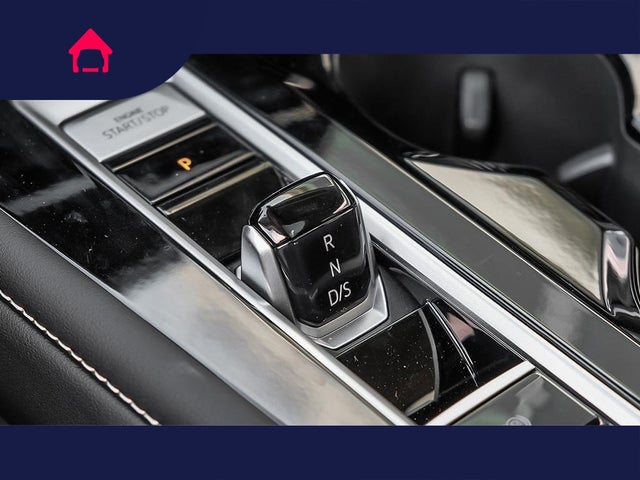

• Transmission
• Drivetrain: All Wheel Drive
• Trans Type: 8
• Trans Order Code: PR
• Reverse Ratio (:1): 3.99
• Fifth Gear Ratio (:1): 1.21
• First Gear Ratio (:1): 5.59
• Sixth Gear Ratio (:1): 1.00
• Third Gear Ratio (:1): 1.95
• Eighth Gear Ratio (:1): 0.67
• Fourth Gear Ratio (:1): 1.43
• Second Gear Ratio (:1): 3.14
• Seventh Gear Ratio (:1): 0.81
• Trans Description Cont.: Automatic w/OD
• Final Drive Axle Ratio (:1): 3.60

• Weight Information
• Base Curb Weight (lbs): 4643

• Exterior Dimensions
• Wheelbase (in): 117.3
• Height, Overall (in): 70.1
• Length, Overall (in): 200.7
• Track Width, Rear (in): 67.6
• Track Width, Front (in): 67
• Width, Max w/o mirrors (in): 78.3

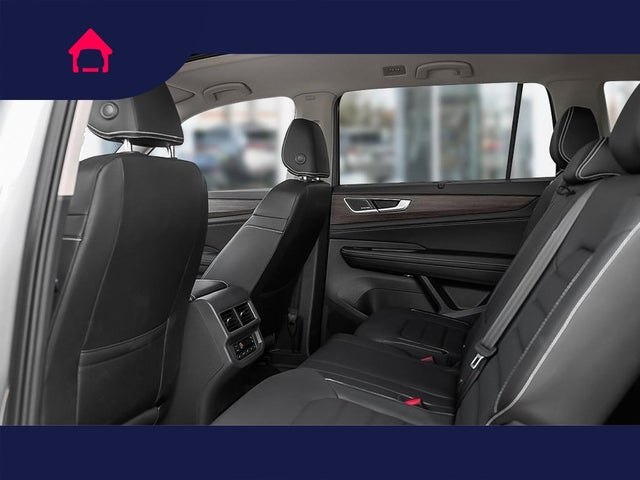

• Interior Dimensions
• Passenger Capacity: 7
• Front Hip Room (in): 58.2
• Front Leg Room (in): 41.7
• Third Hip Room (in): 45.1
• Third Leg Room (in): 33.7
• Front Head Room (in): 41.3
• Second Hip Room (in): 58
• Second Leg Room (in): 37.6
• Third Head Room (in): 38.3
• Second Head Room (in): 40.4
• Passenger Volume (ft³): 154
• Front Shoulder Room (in): 61.5
• Third Shoulder Room (in): 54.9
• Second Shoulder Room (in): 60.8

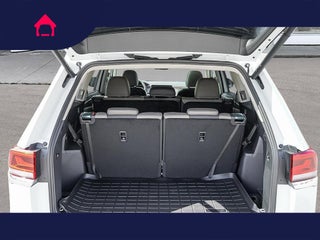

• Cargo Area Dimensions
• Cargo Volume to Seat 1 (ft³): 96.8
• Cargo Volume to Seat 2 (ft³): 55.5
• Cargo Volume to Seat 3 (ft³): 20.6
