2018 Toyota

• Tires
• Rear Tire Size: P225/65HR17
• Front Tire Size: P225/65HR17
• Spare Tire Size: Compact

• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Disc - Rear (Yes or ): Yes
• Disc - Front (Yes or ): Yes
• Rear Brake Rotor Diam x Thickness (in): 11.2
• Front Brake Rotor Diam x Thickness (in): 10.8

• Engine
• Engine Type: Regular Unleaded I-4
• Fuel System: Sequential MPI
• Displacement: 2.5 L/152
• SAE Net Torque @ RPM: 172 @ 4100
• SAE Net Horsepower @ RPM: 176 @ 6000

• Wheels
• Rear Wheel Material: Steel
• Front Wheel Material: Steel
• Rear Wheel Size (in): 17 X 6.5
• Spare Wheel Material: Steel
• Front Wheel Size (in): 17 X 6.5
• Spare Wheel Size (in): Compact

• Mileage
• Fuel Economy Est-Combined (MPG): 26
• EPA Fuel Economy Est - Hwy (MPG): 30
• EPA Fuel Economy Est - City (MPG): 23

• Summary
• Body Style: Sport Utility

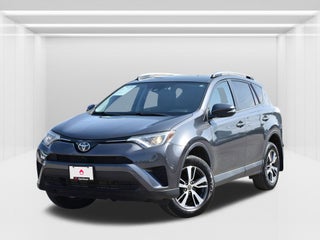

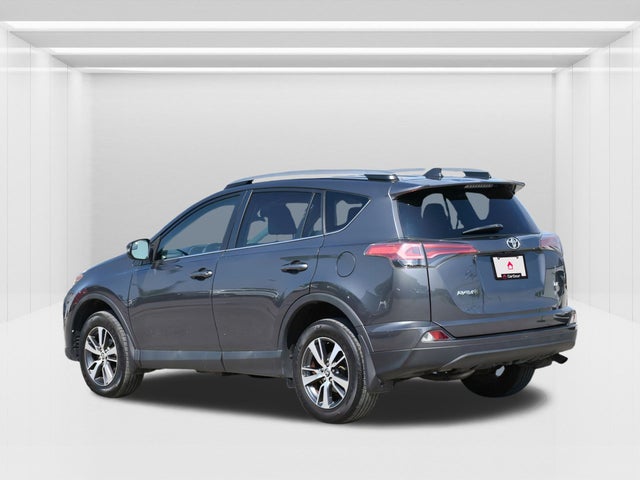

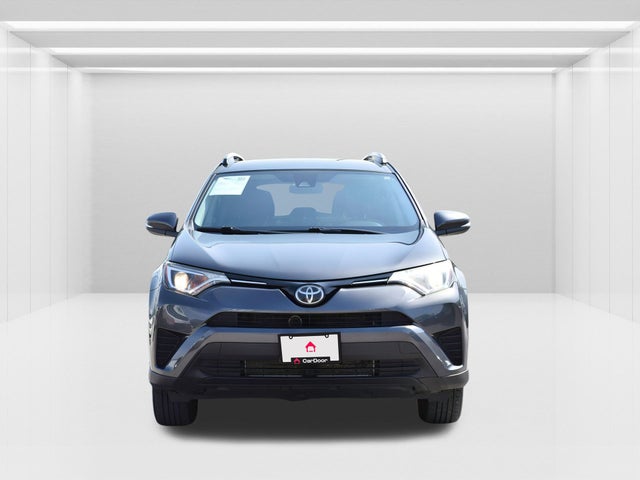

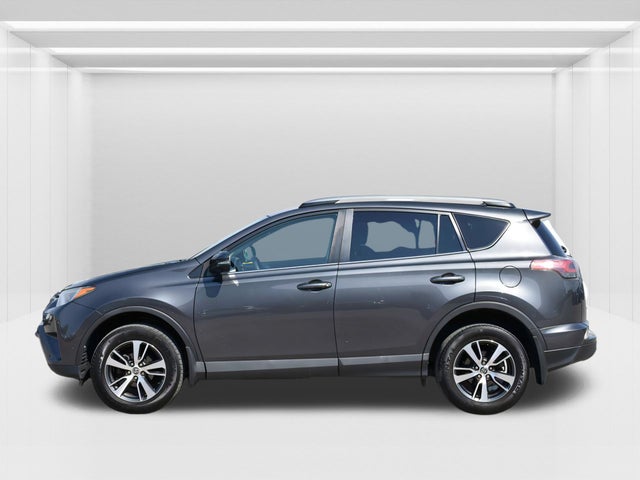

• Vehicle Name: Toyota RAV4

• Vehicle
• EPA Classification: Small SUV 2WD

• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 34.8

• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 7.1

• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 15.9

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 550

• Suspension
• Suspension Type - Rear: Double Wishbone
• Suspension Type - Front: Strut
• Suspension Type - Rear (Cont.): Double Wishbone
• Suspension Type - Front (Cont.): Strut

• Trailering
• Maximum Trailering Capacity (lbs): 1500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 150
• Dead Weight Hitch - Max Trailer Wt. (lbs): 1500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 150
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 1500

• Transmission
• Drivetrain: Front Wheel Drive
• Trans Type: 6
• Reverse Ratio (:1): 4.15
• Fifth Gear Ratio (:1): 0.71
• First Gear Ratio (:1): 3.30
• Sixth Gear Ratio (:1): 0.61
• Third Gear Ratio (:1): 1.42
• Fourth Gear Ratio (:1): 1.00
• Second Gear Ratio (:1): 1.90
• Trans Description Cont.: Automatic w/OD
• Final Drive Axle Ratio (:1): 3.81

• Weight Information
• Base Curb Weight (lbs): 3455

• Exterior Dimensions
• Wheelbase (in): 104.7
• Height, Overall (in): 65.9
• Length, Overall (in): 181.1
• Track Width, Rear (in): 61.8
• Track Width, Front (in): 61.8
• Min Ground Clearance (in): 6.1
• Width, Max w/o mirrors (in): 72.6

• Interior Dimensions
• Passenger Capacity: 5
• Front Hip Room (in): 54.3
• Front Leg Room (in): 42.6
• Front Head Room (in): 39.8
• Second Hip Room (in): 48.9
• Second Leg Room (in): 37.2
• Second Head Room (in): 38.9
• Passenger Volume (ft³): 101.9
• Front Shoulder Room (in): 57.3
• Second Shoulder Room (in): 55.4

• Cargo Area Dimensions
• Cargo Volume to Seat 1 (ft³): 73.4
• Cargo Volume to Seat 2 (ft³): 38.4
