2024 Volkswagen

• Tires
• Rear Tire Size: P235/35YR19
• Front Tire Size: P235/35YR19

• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Disc - Rear (Yes or ): Yes
• Disc - Front (Yes or ): Yes
• Rear Brake Rotor Diam x Thickness (in): 12.2
• Front Brake Rotor Diam x Thickness (in): 14.1

• Engine
• Engine Type: Intercooled Turbo Premium Unleaded I-4
• Fuel System: Gasoline Direct Injection
• Displacement: 2.0 L/121
• SAE Net Torque : RPM
• SAE Net Horsepower : RPM

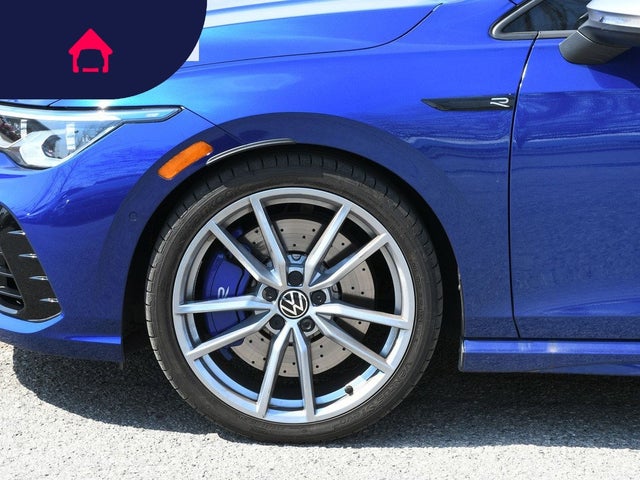

• Wheels
• Rear Wheel Material: Aluminum
• Front Wheel Material: Aluminum
• Rear Wheel Size (in): 19 X 8
• Front Wheel Size (in): 19 X 8

• Mileage
• Fuel Economy Est-Combined (MPG): 23
• EPA Fuel Economy Est - Hwy (MPG): 28
• EPA Fuel Economy Est - City (MPG): 20

• Summary
• Body Style: 4MOTION Hatchback

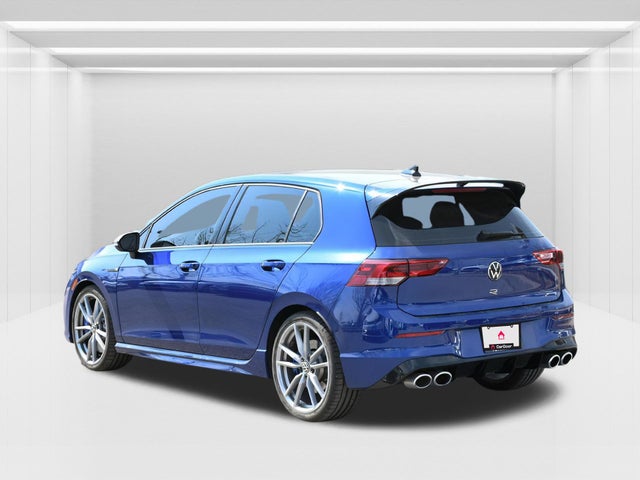

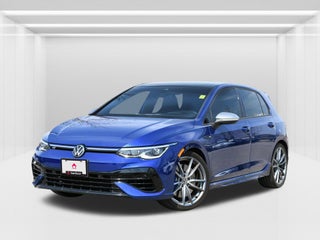

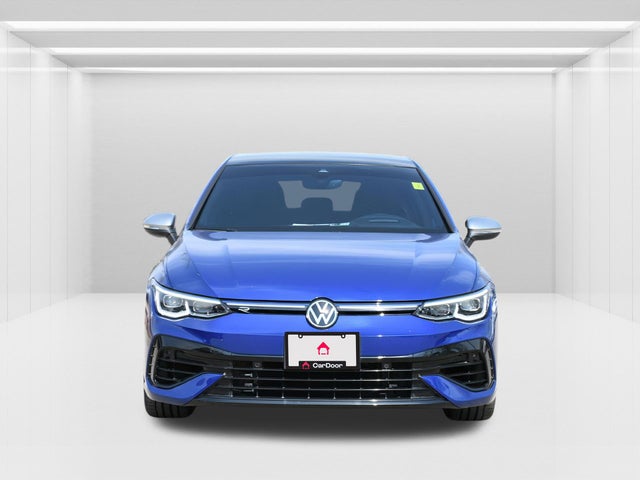

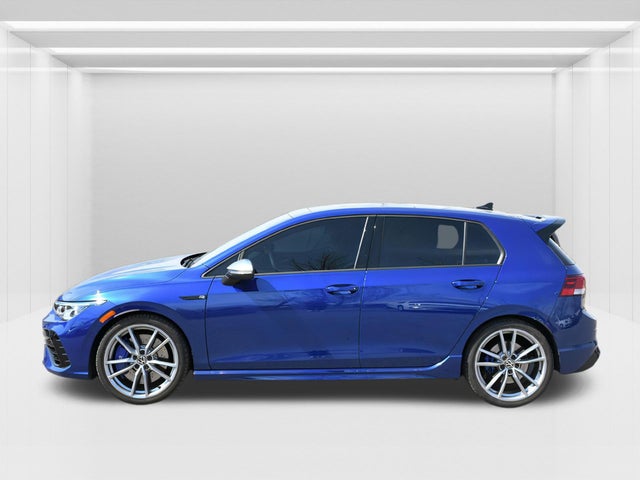

• Vehicle Name: Volkswagen Golf R

• Vehicle
• EPA Classification: Midsize Cars

• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 39.3

• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year

• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 14.5

• Electrical
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 140

• Suspension
• Suspension Type - Rear: Multi-Link
• Suspension Type - Front: Strut
• Suspension Type - Rear (Cont.): Multi-Link
• Suspension Type - Front (Cont.): Strut

• Transmission
• Drivetrain: All Wheel Drive
• Trans Type: 6
• Trans Order Code: MU
• Reverse Ratio (:1): 2.43
• Fifth Gear Ratio (:1): 1.10
• First Gear Ratio (:1): 3.36
• Sixth Gear Ratio (:1): 0.91
• Third Gear Ratio (:1): 1.48
• Fourth Gear Ratio (:1): 1.09
• Second Gear Ratio (:1): 2.09

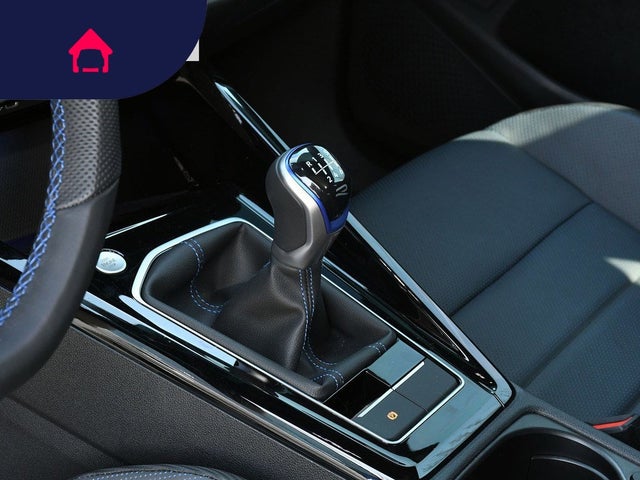

• Trans Description Cont.: Manual w/OD
• Final Drive Axle Ratio (:1): 3.27

• Weight Information
• Base Curb Weight (lbs): 3397

• Exterior Dimensions
• Wheelbase (in): 103.5
• Height, Overall (in): 57.7
• Length, Overall (in): 168.9
• Track Width, Rear (in): 59.7
• Track Width, Front (in): 60.7
• Min Ground Clearance (in): 4.7
• Width, Max w/o mirrors (in): 70.4

• Interior Dimensions
• Passenger Capacity: 5
• Front Hip Room (in): 53.4
• Front Leg Room (in): 41.2
• Front Head Room (in): 38.5
• Second Hip Room (in): 46.3
• Second Leg Room (in): 35
• Second Head Room (in): 38.1
• Passenger Volume (ft³): 91.9
• Front Shoulder Room (in): 55.9
• Second Shoulder Room (in): 53.9

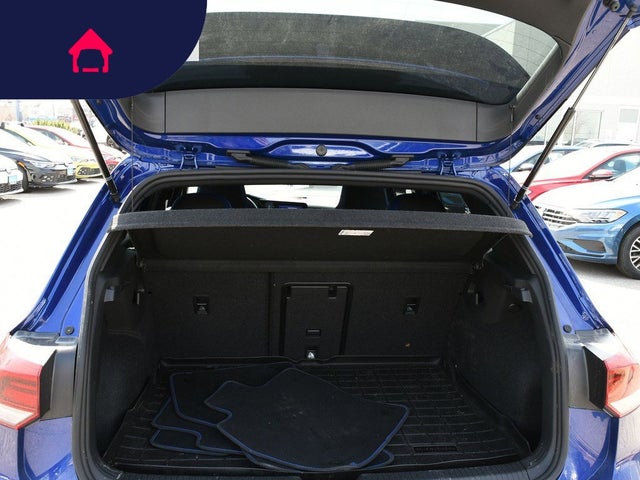

• Cargo Area Dimensions
• Cargo Volume with Rear Seat Up (ft³): 19.9
• Cargo Volume with Rear Seat Down (ft³): 34.5
